CR Unicorn S per autovetture e veicoli commerciali

Caratteristiche

  • Sistema operativo: Android 9.0
  • RAM: 8G
  • ROM: 256G
  • Schermo: 13,3 pollici Touchable;
  • Capacità della batteria: 18600 mAh / 3,8 V
  • Risoluzione: 1920 * 1080
  • Fotocamera: posteriore 13,0 MP
  • Rete: Wi-Fi, WLAN 802.11b / g / n
  • Bluetooth: Bluetooth 5.1 Temperatura

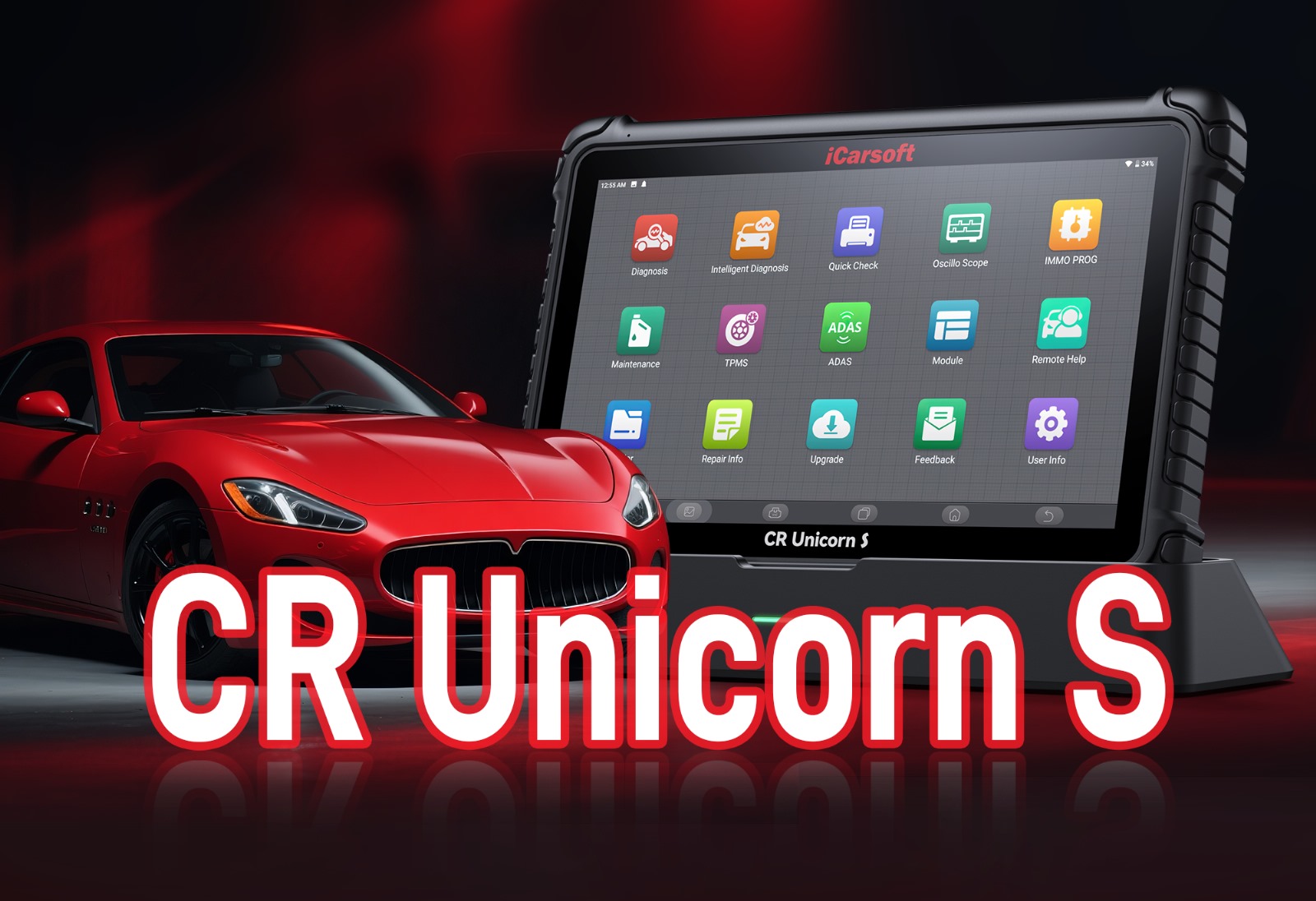

CR UNICORN S

One-stop Multitasking OE-Level Professional Automotive Car and Truck Diagnostic Tool

Omni-directional

Intergraded Smart Ultra-high Cost Performance

The CR Unicorn S is iCarsoft's latest One-Stop intelligent automotive Car and Truck Diagnostic Tool

With a 13.3 inches screen, this fantastic tool will certainly maximize technician intelligence. The CR Unicorn S comes with a smart VCI which includes the latest protocols such as J2534, DoIP, CanFD, D-PDU, and RP1210 protocols. It has heavy duty package with common adaptors for truks. It also standard equipped with TPMS Programming tool, Printer, Video scope and Battery Tester. The 4-channel Oscilloscope, Key programming and ADAS are optional which allows to shop on demands. Combined with the dynamic topology module mapping, enhanced camera scan features and Intelligent Diagnosis options, the CR Unicorn S offers the technicians step-by-step repair guidance.

Cloud-Based
Advanced ECU Programming
and Coding

The need to perform programming and coding services is now more relevant in the aftermarket than ever. There are more and more instances where programming/coding is necessary, e.g., replacing a module, replacing the existing software or firmware in the ECUs, fixing software-controlled drivability issues and emission issues, etc. There are two general types of programming operations:

A. ECU CODING

Also known as Teach-in Program, or Component Adaptation, is used to reprogram adaptive data for vehicle control modules after repairs or replacements of vehicle parts.

B. ECU Programming

iCarsoft CR Unicorn can help you solve all above issues. With D-PDU, SAE J2534 & RP1210 protocols, The CR Unicorn diagnosing, coding, and programming for more passenger and commercial vehicles, much more advanced than J2534 programming tools.

Revolutionary Topology Module Mapping

iCarsoft CR Unicorn has Topology Module Mapping design to give you the distinctive diagnostic results:

Displays the entire system through the Topology Map to glance all the modules with faults, which is easy to locate faults and causes. Color-coded topology displays all system status in one page View structure of communication between modules Makes Supported: for BMW, for Ford, for Volkswagen, for Audi, for GM, for Chrysler, for Nissan, for Honda, for Toyota-Lexus, for Jaguar L-and Rover, for Mercedes-Benz, for Hyundai, for Kia, for Volvo.

Bi-Directional Control / Active Test

CR Unicorn S is a bi-directional scanner that can send commands to the ECU to activate vehicle-specific subsystems and components like Fuel Pump, Valves, Injectors, Solenoids, Relay, AC Clutch, Wipers, Windows, Doors, Sunroofs ,etc. to perform tests like switching a Solenoid, Relay, EVAP test, etc.

SPECIAL SERVICE FUNCTIONS FOR CARS

Visualizza l'intero sistema tramite la mappa topologica per visualizzare tutti i moduli con guasti, facilitando l'individuazione di guasti e cause. La topologia con codice colore mostra tutto lo stato del sistema in un'unica pagina. Visualizza la struttura della comunicazione tra i moduli. Marche supportate: per BMW, per Ford, per Volkswagen, per Audi, per GM, per Chrysler, per Nissan, per Honda, per Toyota-Lexus, per Jaguar L e Rover, per Mercedes-Benz, per Hyundai, per Kia, per Volvo.

1 OIL (Maintenance Light Reset)
2 ETS (Throttle Matching)
3 SAS (Steering Angle Reset)
4 BMS (Battery Matching)
5 BLEEDING (ABS Bleeding)
6 BRAKE (Electronic Parking Brake Reset)
7 DPF (DPF Regeneration)
8 GEAR (Tooth Learning)
9 IMMO (Anti-theft Matching)
10 INJEC (Injector Coding)
11 TPMS (Tire Pressure Reset)
12 SUS (Suspension Level Calibration)
13 AFS (Adaptive Front-lighting System Reset)
14 GEAR BOX (A/T Learning)
15 SUN (Sunroof Initialization)
16 EGR (EGR Adaption)
17 ODO (ODO Reset)
18 AIR BAG (Airbag Reset)
19 TRANSPORT (Transport Mode)
20 A/F (A/F Reset)
21 STOP/START (Stop/Start Reset)

22 NOX (NOx Sensor Reset)
23 ADBLUE (Diesel Engine Exhaust Gas Filter)
24 SEATS (Seat Calibration)
25 COOLANT (Coolant Bleeding)
26 TYPE (Tire Reset)
27 WINDOWS (Windows Calibration)
28 LANGUAGE (Language Change)
29 AC System Relearn/Initialization
30 Engine Power Balance Monitoring
31 Gas Particulate Filter Regeneration
32 High Voltage Battery Diagnostics
33 Intelligent Cruise Control System
34 Motor Angle Calibration
35 IMMO PROG (Optional)
36 Clutch Matching
37 ECU Reset
38 FRM Matching
39 Gateway Module Data Calibration
40 Rainfall Light Sensor
41 Turbocharging Matching

Standard Configuration

iCarsoft T-Wand 9000

Support Sensor Activation
Support Sensor Programming
Read and Clear the Tire Pressure Faults

Thermal
Printer

Batter Tester

Offers full battery check services
Support Battery Health Test
Support Start System Test
Support Charging Health Test
Offers Test Report

Batter Tester

The digital inspection camera is designed to work
with CR Unicorn S. It turns your CR Unicorn S tablet
into a video inspection scope, allowing you to
examine difficult-to-reach areas normally hidden
from sight. It is capable of recording digital still
images and videos, which offers you an economical
solution to inspect machinery, facilities and
infrastructure in a safe and quick way.

OPTIONAL Configuration

The iCarsoft Scope Box is an optional device, please visit the following link to order it.

Visualizza l'intero sistema tramite la mappa topologica per visualizzare tutti i moduli con guasti, facilitando l'individuazione di guasti e cause. La topologia con codice colore mostra tutto lo stato del sistema in un'unica pagina. Visualizza la struttura della comunicazione tra i moduli. Marche supportate: per BMW, per Ford, per Volkswagen, per Audi, per GM, per Chrysler, per Nissan, per Honda, per Toyota-Lexus, per Jaguar L e Rover, per Mercedes-Benz, per Hyundai, per Kia, per Volvo.

iCarsoft Scope Box

Ultra-high configuration of 100MHz bandwidth, 4 channels, up to 1GSa/s of sampling rate, with 50Mpts record length.

A scope box focusing on automobile maintenance diagnosis, modular integration with the diagnosis host, customized software for automotive maintenance industry.

Perform different vehicle ignition tests, and a variety of sensor and actuation tests;

Support multi-vehicles’ BUS decoding.

Wide range of applications on gasoline vehicle, diesel vehicle, hybrid vehicle, new energy vehicle and truck.

IM2000 PRO Immobilizer Programmer

The iCarsoft IM2000 PRO is an optional device, please visit the following link to order it.

Visualizza l'intero sistema tramite la mappa topologica per visualizzare tutti i moduli con guasti, facilitando l'individuazione di guasti e cause. La topologia con codice colore mostra tutto lo stato del sistema in un'unica pagina. Visualizza la struttura della comunicazione tra i moduli. Marche supportate: per BMW, per Ford, per Volkswagen, per Audi, per GM, per Chrysler, per Nissan, per Honda, per Toyota-Lexus, per Jaguar L e Rover, per Mercedes-Benz, per Hyundai, per Kia, per Volvo.

IM2000 PRO Anti-theft Immobilizer Programmer

IM2000 PRO Anti-theft Immobilizer Programmer
Core Functions
1. Supports VW/AUDI MQB platform engine ECU replacement or cloning (Read engine ECU data directly from the key).
2. Supports VW/AUDI MQB platform gearbox ECU replacement or cloning.
3. Supports ECU replacement for the fifth-generation of For Audi (0AW/0B5) gearbox.
4. Supports reading, writing & cloning the ECU for the fourth-generation of For VW UDS engine.
5. Supports BMW E chassis 8HP gearbox ECU reprogramming to empty.
6. Works with reprogramming device to backup/restore programming data (For Bosch/Siemens engine ECU).
7. Integrated the functions of key matching/copy, anti-theft IC reading & writing, and ECU reading & writing, etc.
8. Supports common ECU/MCU/EEPROM major manufacturers, with over 1200 product models, and constantly updating.
9. Supports ECU replacement for all lost without disassembly for VW/AUDI non-35XX instrument (it can be read directly through independent harness without removing the IC).
10. Supports ECU replacement for the fourth-generation of For VW/AUDI engine;
11. Supports ECU replacement for the fifth-generation of For VW/AUDI Bosch and Siemens engines.
12. Supports the all lost and replacement for the fourth generation of For AUDI EZS, comfortable ECU, and KESSY IC.
13. Supports the BMW F and G chassis 8HP gearbox ECU reprogramming to empty.
14. Supports the BMW CAS4/CAS4+ module replacement.
15. Supports the ECU cloning and replacement for BMW Siemens engines.
16. Erase the password for Mercedes-Benz engine and gearbox within 3S.
17. Add the function of calculating the password for the Mercedes-Benz key within 1 minute.

Technical parameters
Input Voltage: 12 V
Input Current: 500mA
Working Environment: 0°C~50°C
Storage Environment: -20°C ~70°C

Vehicle connection:
For most vehicles, just use the included OBD II extension cable to connect the VCI of the diagnostic tool (Such as iCarsoft CR Unicorn, CR Unicorn S and CR Ultra) to the vehicle’s DLC port.

PRODUCT SPECIFICATIONS

Operating System: Android 9.0
RAM: 8G
ROM: 256G
Screen: 13.3 inches Touchable;
Battery Capacity: 18600mAh/3.8V
Resolution: 1920*1080
Camera: Rear 13.0MP
Network: Wi-Fi, WLAN 802.11b/g/n
Bluetooth: Bluetooth 5.1
Working Temperature: 32°F~122°F （0°C~50°C））
Storage Temperature: -40°F~140°F （-20°C~60°C）
Demission: 14.33*11.22*3.23 inches (364*285*82 mm)
Weight: 5.54lb (2512g)

VCI

Screen: 3.97 inches RAM: 256M
ROM: 8G
Power: 6W
Operating Voltage: 9~36V
Local Diagnostic Communication:
Wi-Fi/USB
Working Temperature: 32°F~122°F
(0°C~50°C)
Storage Temperature: -40°F~140°F
(-20°C~60°C)
Demission: 7.72*5.31*1.70 inches

Product details display

Presentation of effect

CONTENTS

OPTIONAL ACCESSORIES
